RedSeal Dual Overshot Packer

RedSeal Dual Overshot Packer

Description

  • The RedSeal Dual Overshot Packer has been developed to provide a dual seal barrier in surface drilling systems used on jack-up and platform applications.
  • The RedSeal Dual Overshot Packer is physically shorter than traditional single packer systems whilst providing an additional 100% redundancy.

Please select an image below to view a larger version.

  • Dual Overshot Packer
  • Dual Overshot Packer
  • Dual Overshot Packer

RedSeal Dual Overshot Packer - Continuous Integrity - Continuous Operations

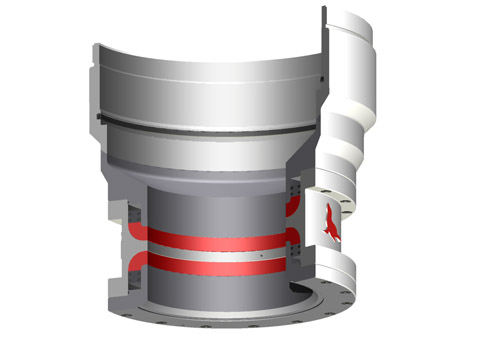

The RedSeal Dual Overshot Packer has been developed to provide a dual seal barrier in surface drilling systems used on jack-up and platform application. The system provides the operator with a primary and secondary seal system to mitigate potential environmental spills.

The system has been developed with a similar design philosophy to the RedSeal Packer system developed for drilling riser telescopic joints but does not include a facility for refill of the packer online as the seal element is a static seal and not subject to the dynamic motion associated to the RedSeal Packer system. Physically the RedSeal Dual Overshot Packer is shorter than traditional single packer systems allowing the system to be utilised in riser systems where stack-up heights are critical.

RedSeal Dual Overshot Packer can be supplied with a dedicated control system to monitor seal actuating pressure and (upon actuating pressure loss to primary seal element) switch automatically to the secondary seal, thereby minimising any environmental impact.

For further information please see our Products and Services section.
